REFURBIHED DISCS

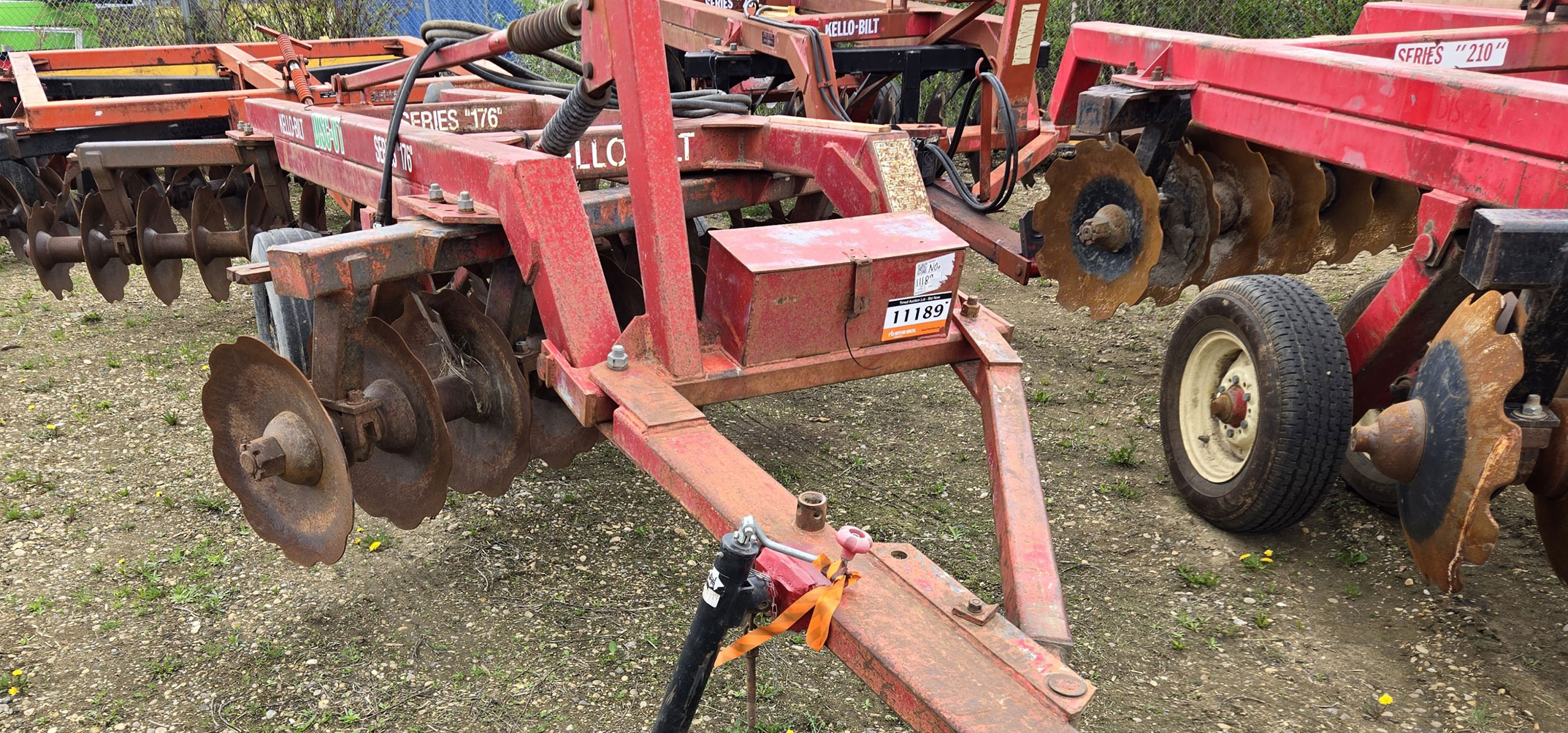

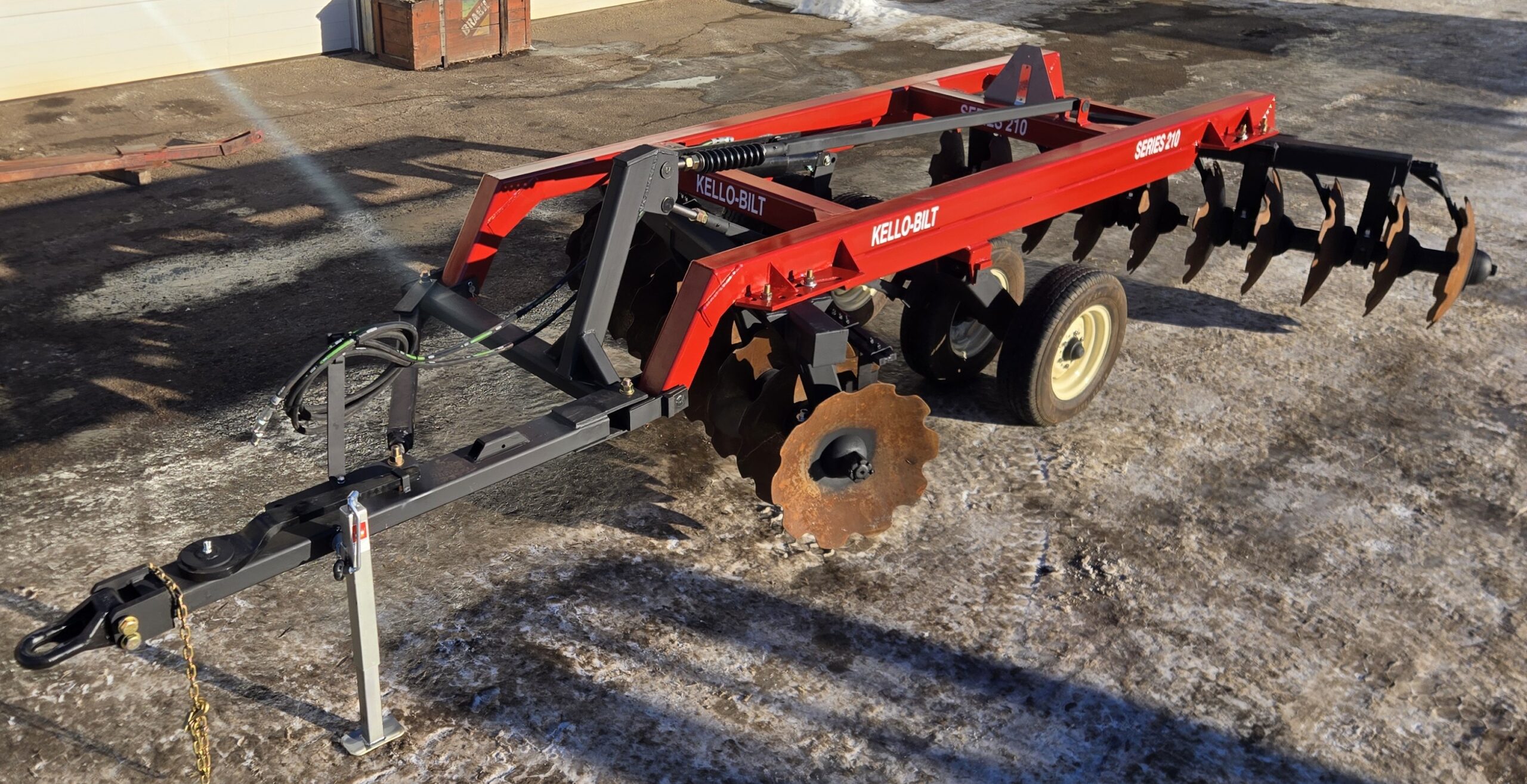

1 only Used / Refurbished 10’ Kello-Bilt Series 210 Single Offset Disc

Before

After

  • Model 210-2326B
  • Serial #KB864178-26L
  • c/w New 3/8″ x 26” Notched blades Front & New 5/16 x 26″
  • Blades Rear – 10.5” Spacing
  • 8 only W214 INA Ball Bearings, 2 3/16” Round Steel Gang Shafts
  • New 5” x 8” Hydraulic Cylinder, New Hose group, Tips & Depth Segments
  • Dual Wheels, 9.5L x 15” Imp. Tires on 6 Bolt hubs – Serviced
  • New Pintle Tongue, F/A Self Levelling Hitch & Slider Bar
  • New Scrapers, 5000 Lb. Jack, Safety chain & Gang Wrench, New Paint

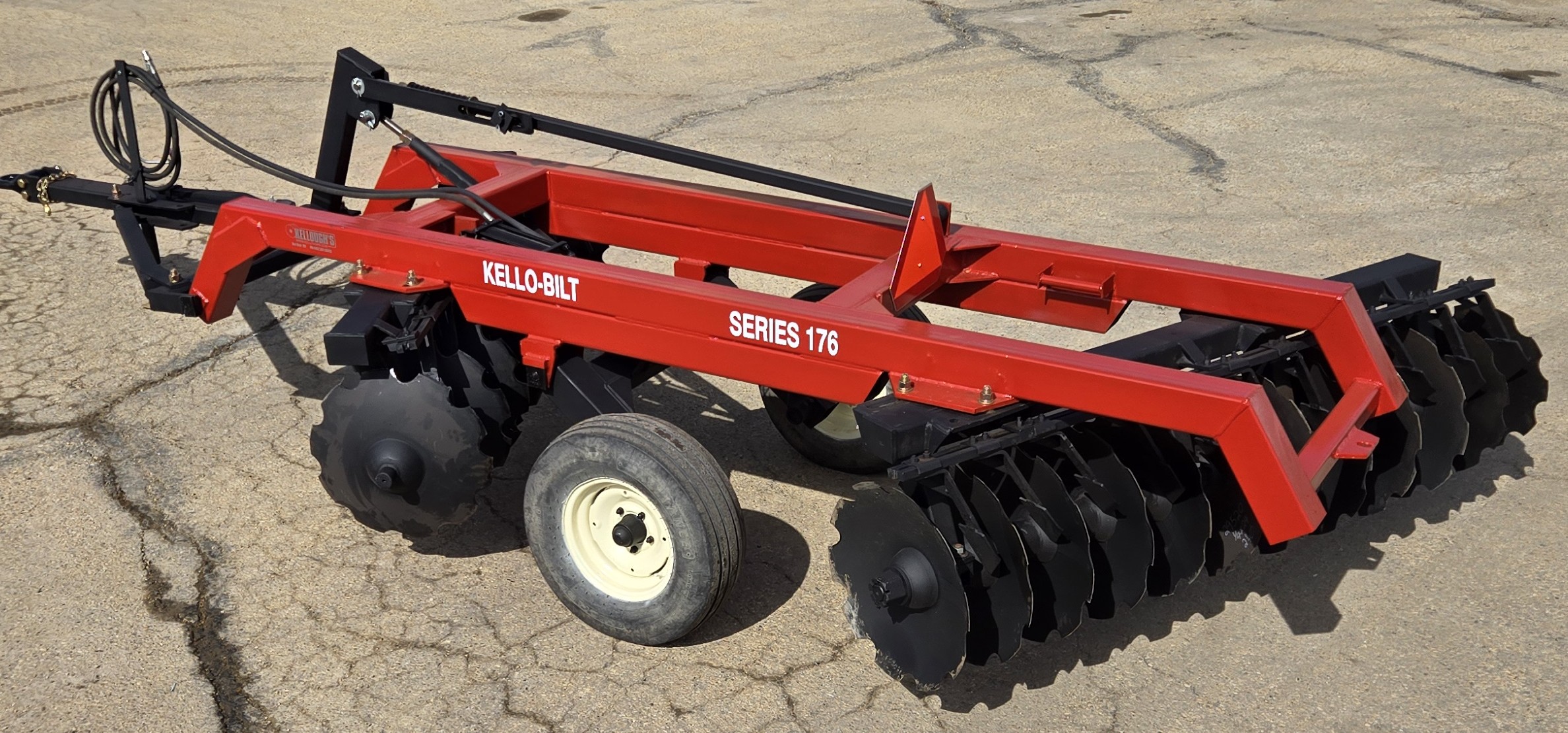

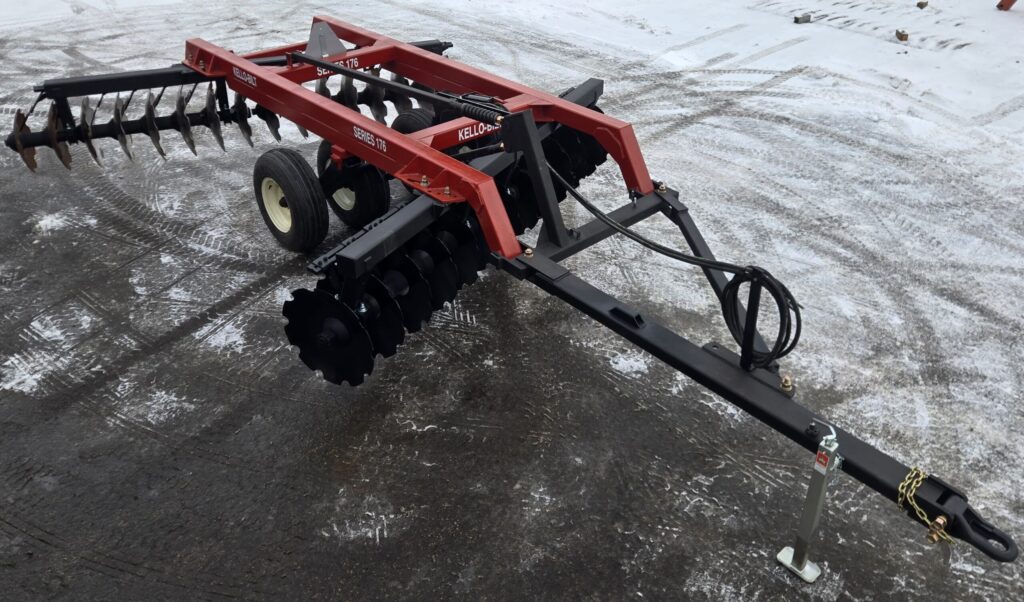

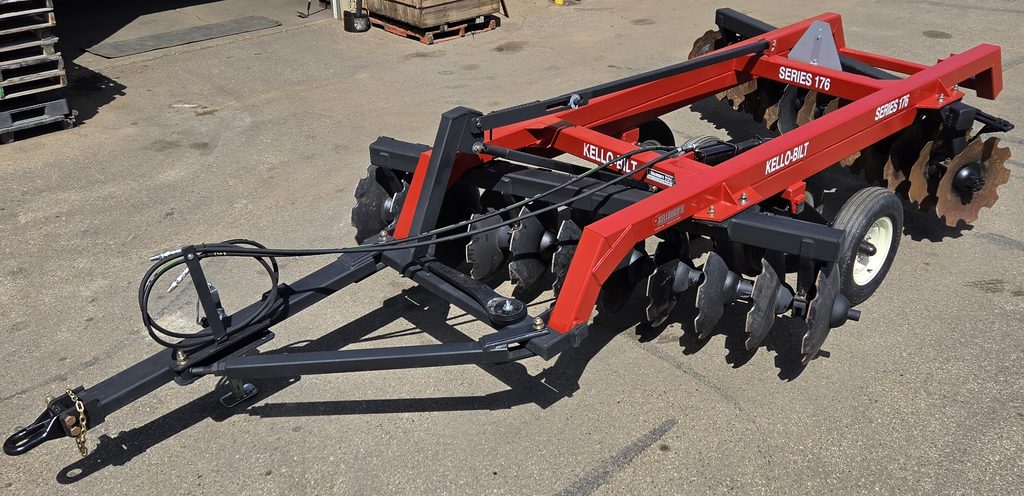

1 only Used / Refurbished 8′ Kello-Bilt Series 176-2124B Single Offset Disc

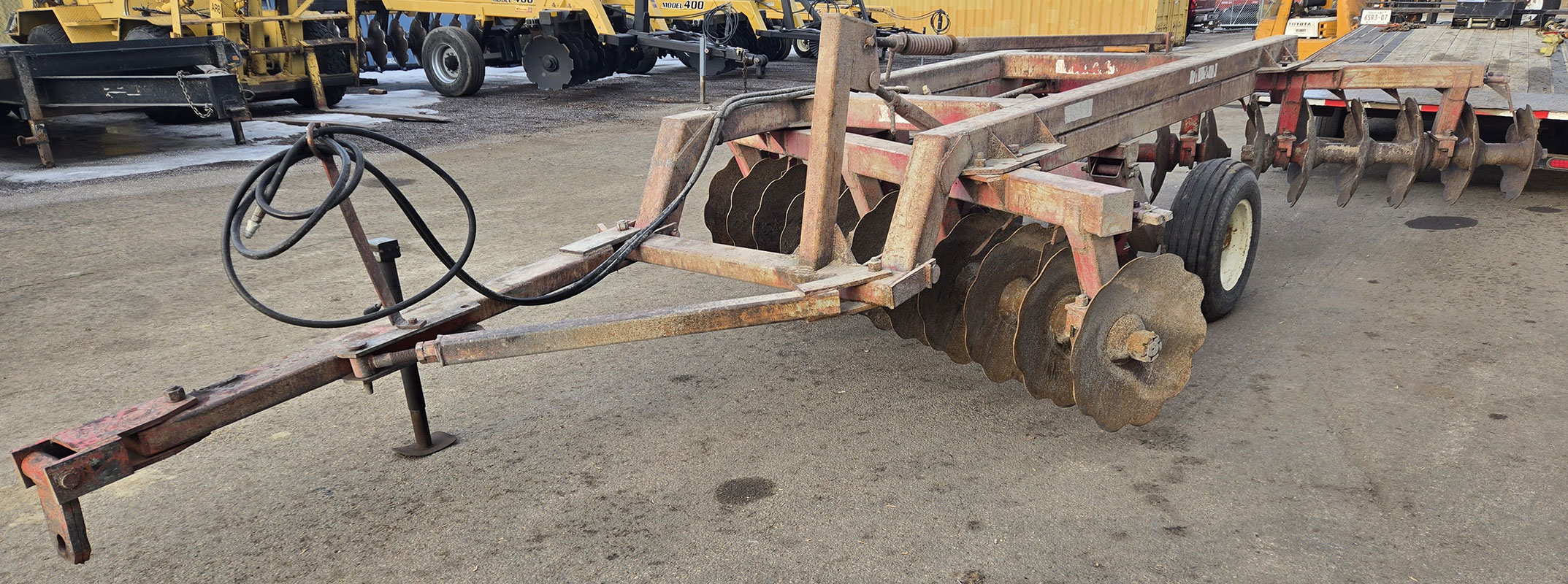

Before

After

  • Model 176-2124B
  • Serial # KB8540201-24B
  • c/w New 1/4″ x 24″ Notched Blades Front – 10 1/2″ Spacing
  • New 1/4″ X 24″ Notched Blades Rear – 9″ spacing
  • 8 only New W211 PEER Ball Bearings F & R on 2 3/16″ Round Steel Alloy Gang Shafts
  • Dual Wheels, 4 only 670 x 15″ Implement Tires on 5 Bolt Hubs – Serviced
  • New 4″ x 8″ Hydraullic Cylinder, Hose Group, Tips & Depth Segments
  • New Pintle Tongue, For/Aft Self Levelling Hitch & Slider Bar
  • New Scrapers, New 5000 Lb. Jack, Safety Chain & Gang Wrench
  • New Paint

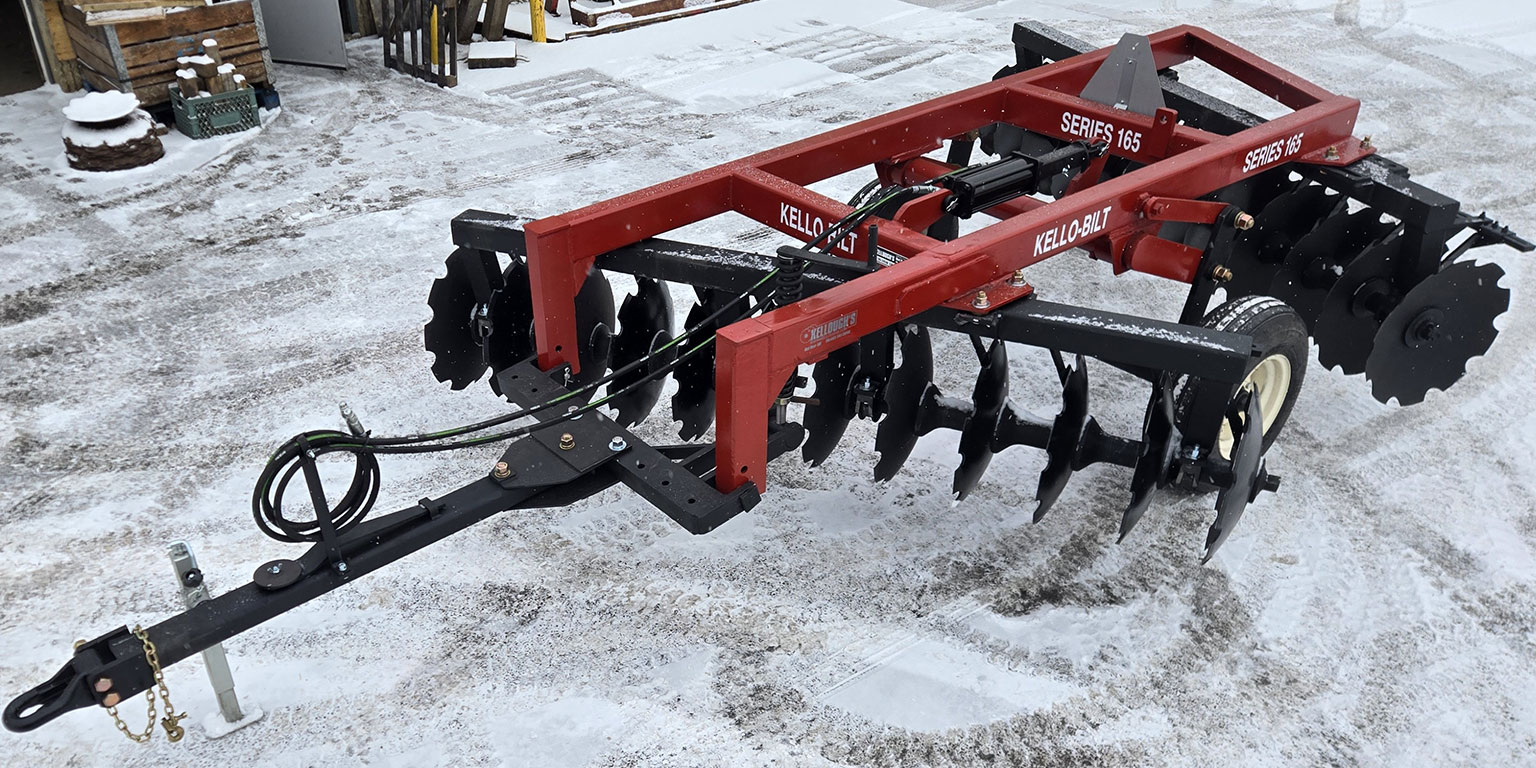

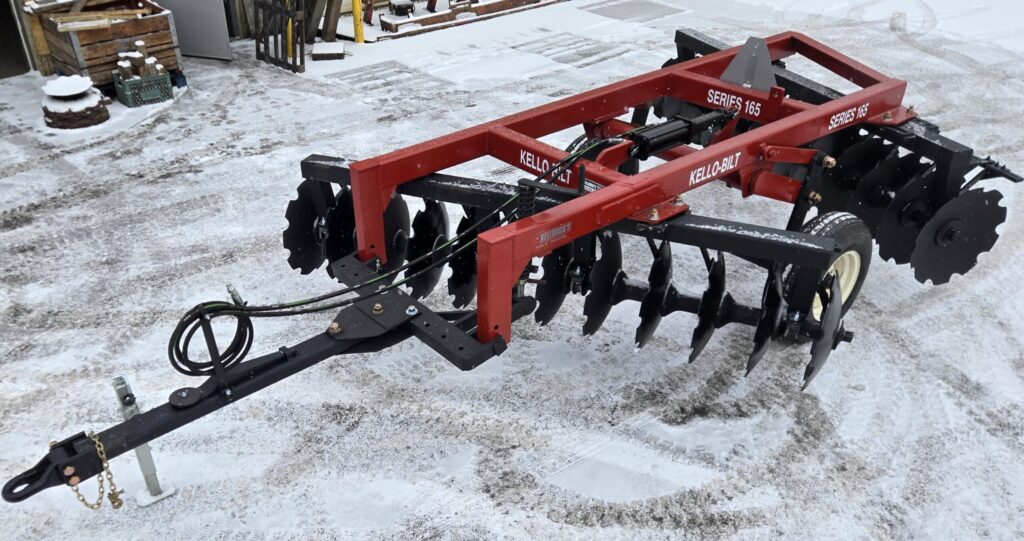

1 only Used / Refurbished Kello-Bilt Series 165 Single Offset Disc

  • Model 1652424B
  • Serial # P165-67-2424R
  • c/w 4″ x 6″ x 1/4″ Rectangular Tube Frame & 4″ x 5″ Gang Bars
  • New 1/4″ x 24″ Notched Blades Front & Rear – 10″ Spacing
  • 8 only New 211 Peer Ball Bearings & Housings F & R on 1 1/2″ Square Steel Gang Shafts
  • New 4″ x 8″ Hydraulic Cylinder, New Hose Group, Tips & Depth Segments
  • Single Wheels, 2 only New 9.5 L Implement Tires on New 6 Bolt Hubs & Wheels
  • New Pintle Tongue on Toe Hitch, New 5000 Jack, Safety Chain & Gang Wrench,
  • New Paint

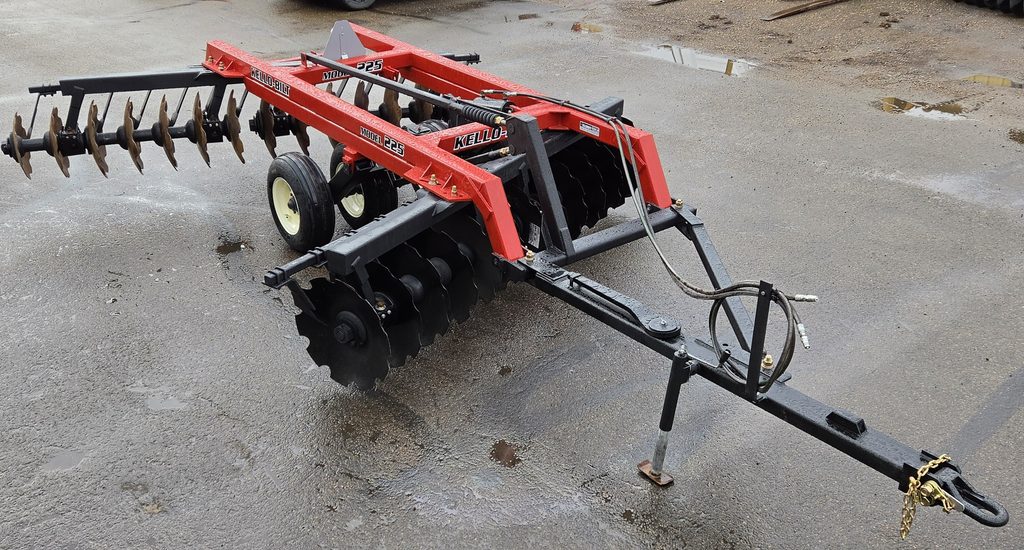

1 only 2001 Used / Refurbished 14′ Kello-Bilt Series 225-3126B Single Offset Disc

  • Model 225-3126B
  • Serial # KB864142-26R
  • c/w 5″ x 5″ x 3/8″ Square Tubular Frame & Gang Bars
  • New 5/16″ x 26″ Ingersol Notched Blades Front – 10 1/2″ spacing
  • Original 5/16″ x 26″ Notched Blades Rear (Now Approx. 24″) – 10 1/2″ spacing
  • 6 only New Oilbath Tapered Roller Bearings Front Gangs & Original Oilbath Tapered Roller Bearings Rear Gangs
  • 2 3/16″ Round Steel Alloy Gang Shafts
  • 5″ x 8″ Hydraulic Cylinder, Hoses, Tips & Depth Segments
  • New Pintle Tongue, Fore/Aft Self Levelling Hitch & Slider Bar
  • Scrapers, 5000 Lb. Hitch Jack, Safety Chain & Gang Wrench

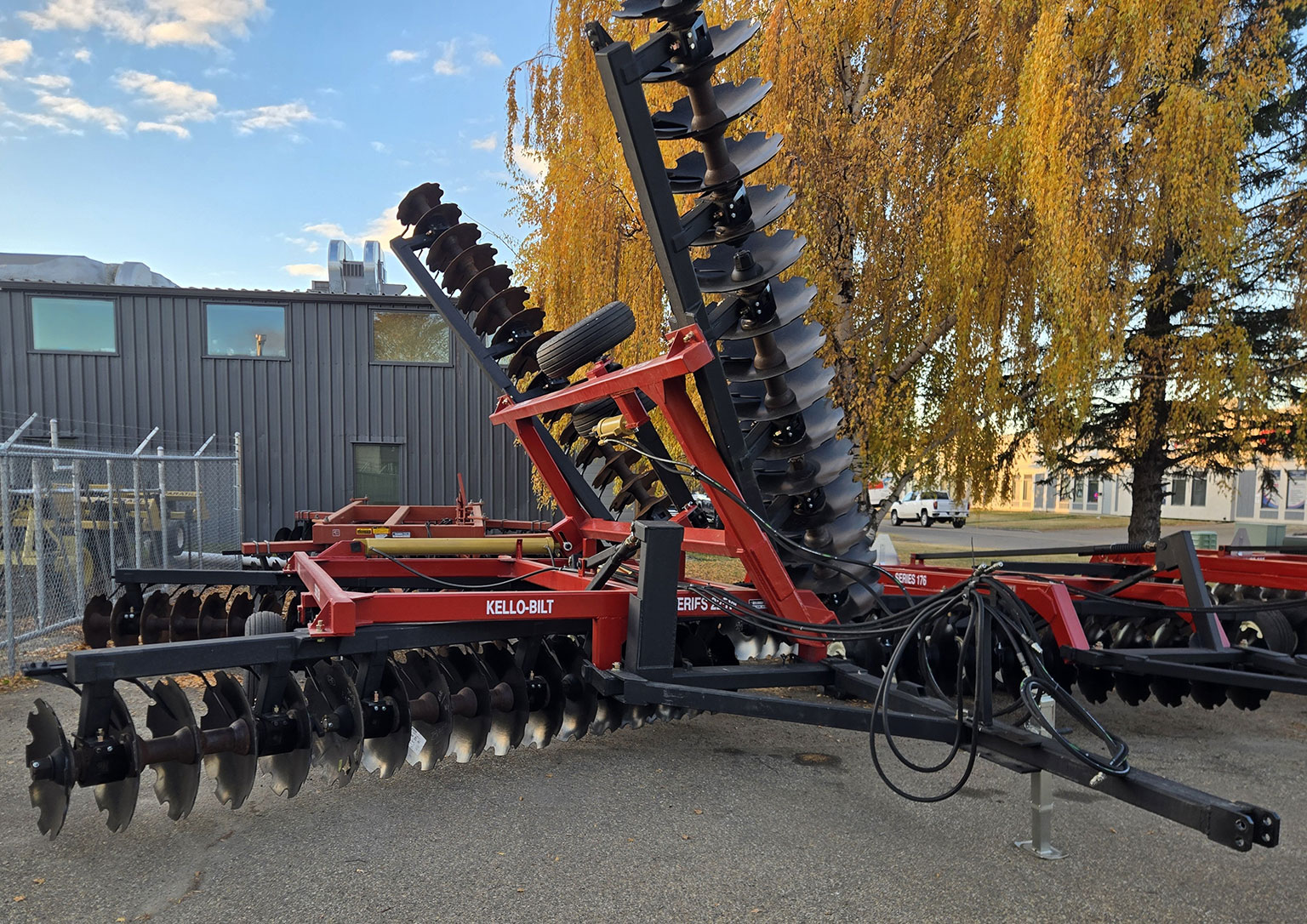

1 only 28′ Used / Refurbished Series 225W-6626B Single Wing Tandem Wing Disc

  • Model 225W-6626B
  • Serial # KB864182-26
  • c/w 4″ x 6″ x 3/8″ Rectangular Tube Frame & 5″ Square Gang Bars
  • New 5/16″ x 26″ Notched Blades Front – 10 1/2″ spacing
  • Original 5″ x 26″ Notched Blades Rear (Now Approx. 25″) – 10 1/2″ spacing
  • 24 only Oilbath Double Tapered Roller Bearings on 2 3/16″ Round Steel Alloy Gang Shafts
  • Dual Wheels, 4 only 11L x 15″ Implement Tires on Main Frame, 2 only 11L x 15″ Implement Tires Wing Frame on 8 Bolt Hubs – Serviced
  • New Pintle Tongue, Fore/Aft Self Levelling Hitch & Slider Bar
  • New 5″ x 12″ Cylinder / Main Frame: New 5″ x 8″ Hydraulic Cylinder Wing Frame & 5″ x 56″ Lift Cylinder, New Hoses, Tips & Depth Segments
  • 7000 Lb. Hitch Jack, Safety Chain & Gang Wrench
  • New Paint

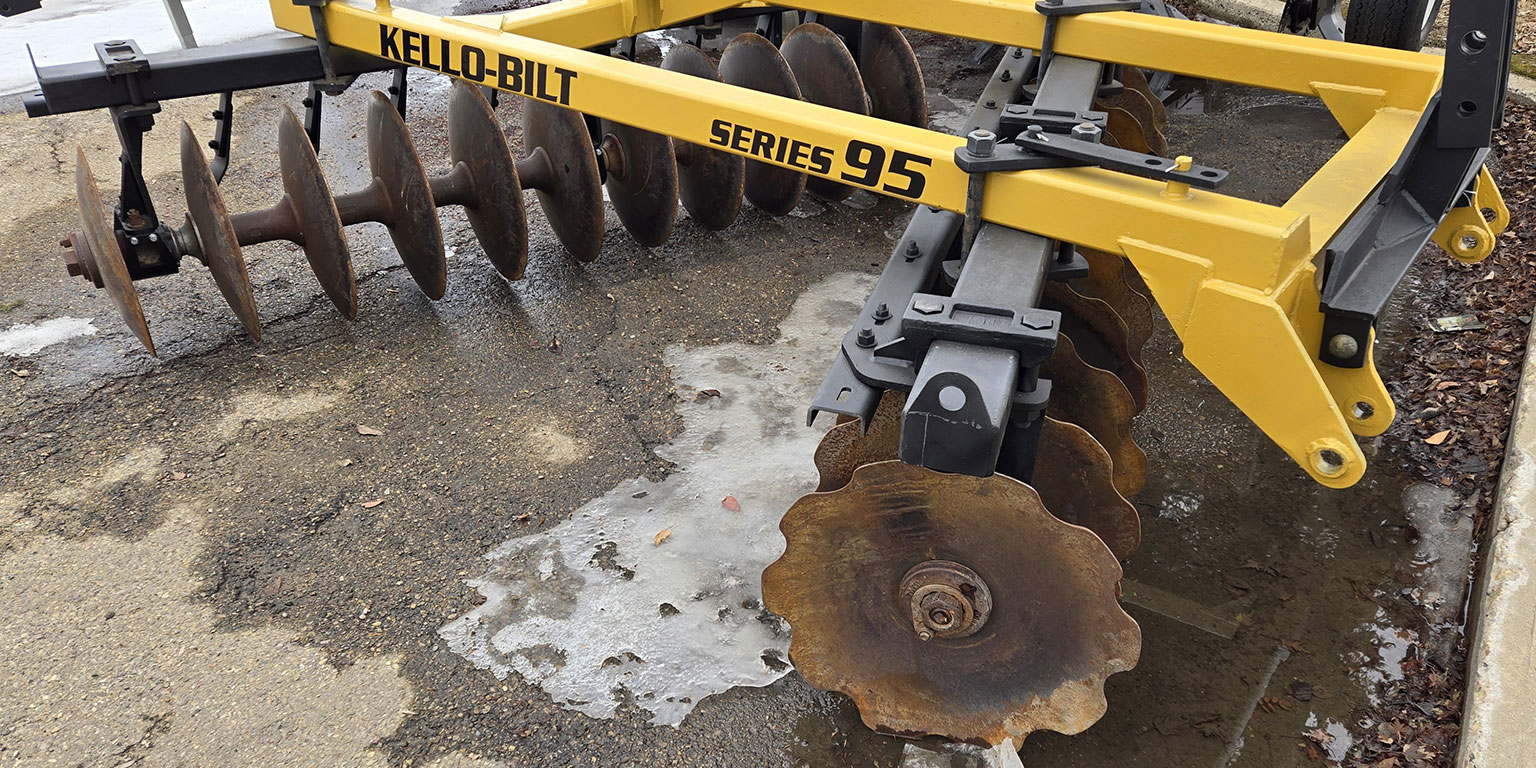

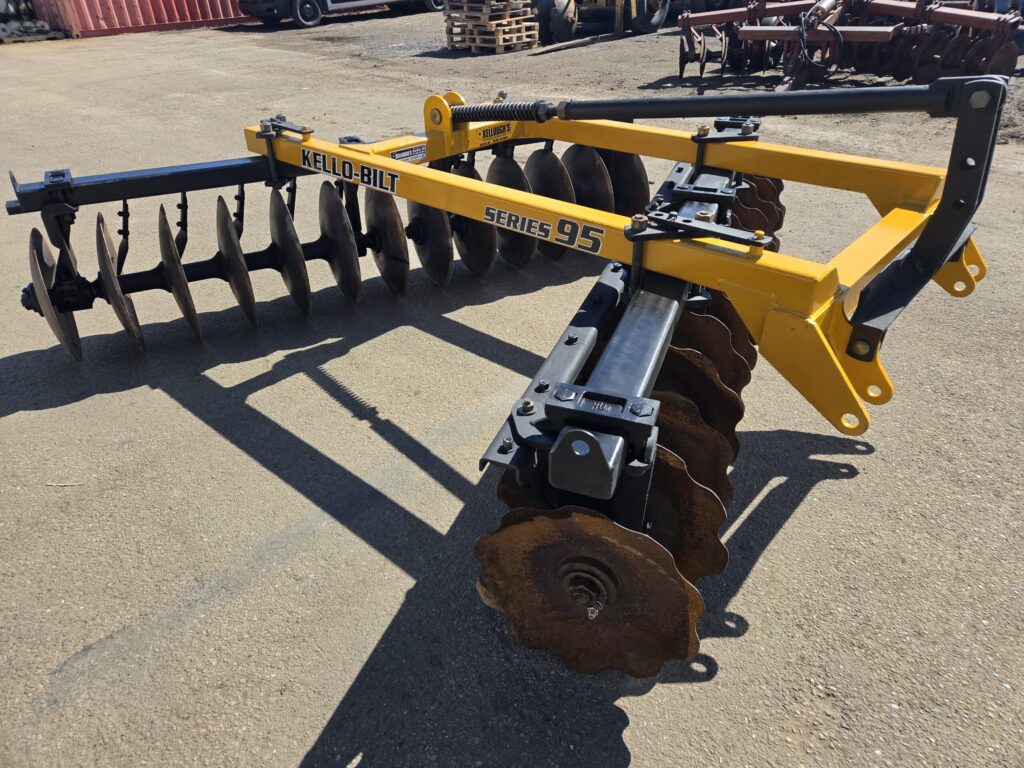

1 only Used 8’1″ Kello-Bilt Series 95 3 Point Hitch Offset Disc Harrow

  • Model 95-2224B
  • Serial # KE071256R
  • c/w 4″ x 4″ x 3/8″ Square Tube Frame
  • Original 1/4″ x 24″ Notched Blades Front – 9″ spacing
  • Original 1/4″ x 24″ Smooth Blades Rear – 9″ spacing
  • Oil-Bath Roller Bearings c/w Duo-Cone seals
  • 1 1/2″ Round Steel Alloy Gang Shafts
  • 9″ Spacer Spools & Scrapers
  • Cat. 11 & 111 – 3 Point Hitch Lift & Pins
